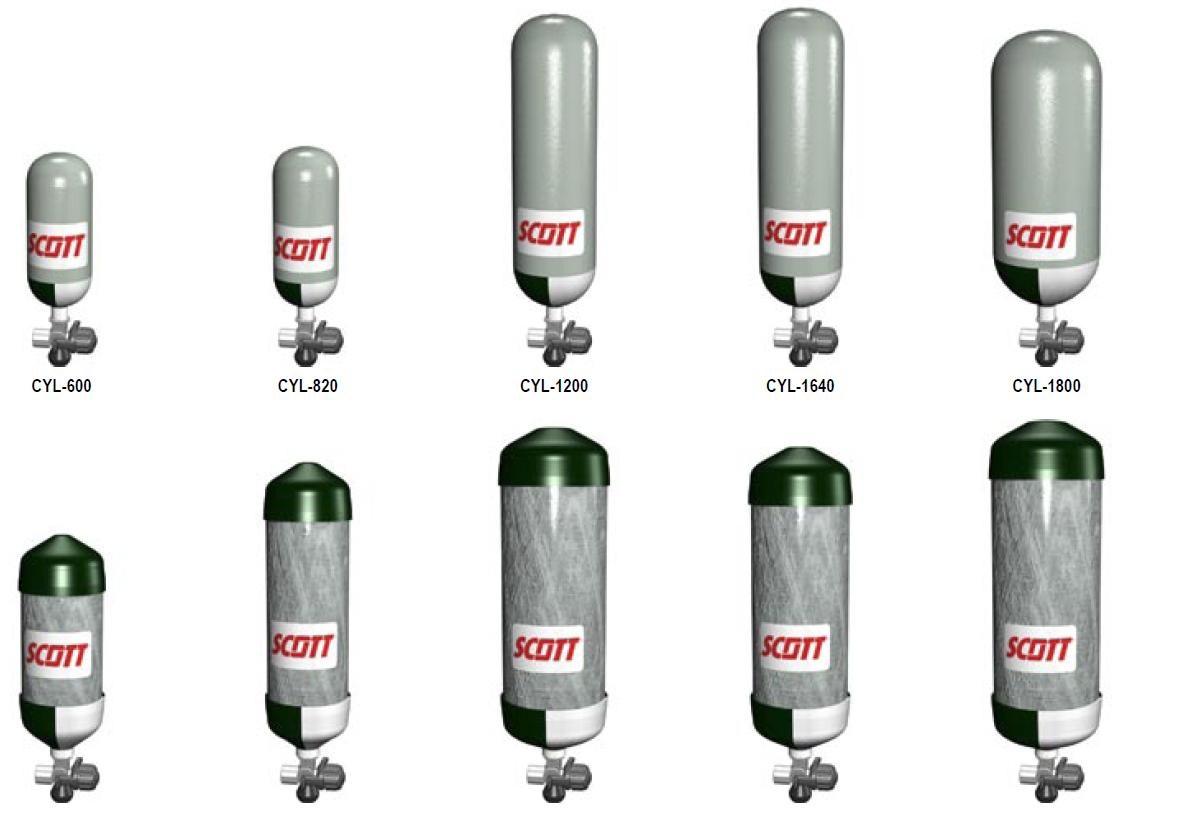

Scotts carbon fibre cylinders provide a light-weight soultion for containing the air required by a Scott breathing apparatus

Available in a range of sizes in both 200 and 300 bar pressure to meet all your operational requirements.

Key Features

• Available in both 200 and 300 bar
• Available in 32, 41,45 and 61 minute durations
• 5 year hydrostatic re-test period
• Unpainted body with black and white quartering
• Valves feature locking handwheel to avoid inadvertant closure

Standards

• CE marked in accordance with the Pressure Equipment Directive (PED)

CYL-FWC-540 2.0 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 540 litre free air capacity providing total duration of 13.5 minutes*. For use with CEN-PAQ apparatus only.

Dimensions: 105mm diameter x 460mm long Fully Charged Weight - 2.6kg

CYL-FWC-1300 4.7 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 1300 litre free air capacity providing total duration of 32 minutes*.

Dimensions: 136mm diameter x 576mm long Fully Charged Weight - 5.2kg

CYL-FWC-1800 9.0 litre, 207 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 1800 litre free air capacity providing total duration of 45 minutes*.

Dimensions: 172mm diameter x 630mm long Fully Charged Weight - 6.8kg

CYL-FWC-1860 6.8 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 1860 litre free air capacity providing total duration of 46 minutes*.

Dimensions: 160mm diameter x 600mm long Fully Charged Weight - 6.8kg

CYL-FWC-2460 9.0 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel. 2460 litre free air capacity providing total duration of 61 minutes*.

Dimensions: 178mm diameter x 640mm long Fully Charged Weight - 8.8kg

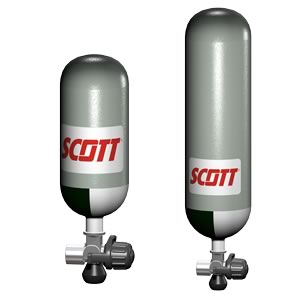

Scott steel cylinders offer a cost effective way to contain air for use with a Scott breathing apparatus.

Available in a range of sizes in both 200 and 300 bar working pressures.

Key Features

• Available in durations of 15, 20, 30, 41, and 45 minutes
• Available in 200 or 300 bar
• Valves feature locking handwheel to avoid inadvertant closure
• 5 years hydrostatic re-test period
• Painted grey body with black and white quartering

Standards

• CE marked in accordance with the PED

CYL-600 3.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 600 litre free air capacity providing total duration of 15 minutes*. For use with CEN-PAQ apparatus only.

Dimensions: 110mm diameter x 375mm long Fully Charged Weight - 4.75kg

CYL-820 3.0 litre, 300 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 820 litre free air capacity providing total duration of 20 minutes*. For use with CEN-PAQ apparatus only.

Dimensions: 110mm diameter x 385mm long Fully Charged Weight - 5.75kg

CYL-1200 6.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1200 litre free air capacity providing total duration of 30 minutes*.

Dimensions: 140mm diameter x 600mm long Fully Charged Weight - 8.8kg

CYL-1640 6.0 litre, 300 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1640 litre free air capacity providing total duration of 41 minutes*.

Dimensions: 140mm diameter x 610mm long Fully Charged Weight - 10.5kg

CYL-1800 9.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1800 litre free air capacity providing total duration of 45 minutes*.

Dimensions: 180mm diameter x 575mm long Fully Charged Weight - 13.0kg
